30906 PAT-MPL

Medium and high voltage substations

680176 680177 680178 680179 680180 680186 680187 680188 680189 680190 680196 680197 680198 680199 680200 680206 680207 680208 680209 680210

Phase earthing and short-circuit equipment for substations.
The main aim for its installation is operator’s protection against an accidental commissioning or possible voltage return during repair operations.

According to IEC 61230 standard

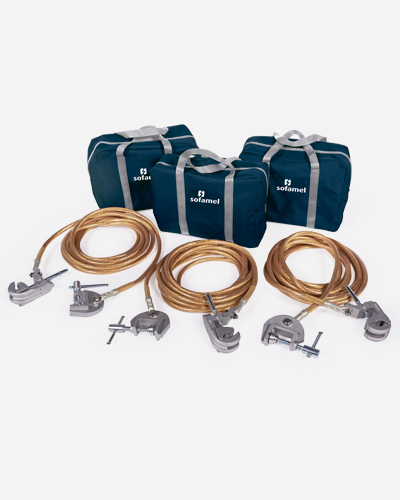

Composed of:

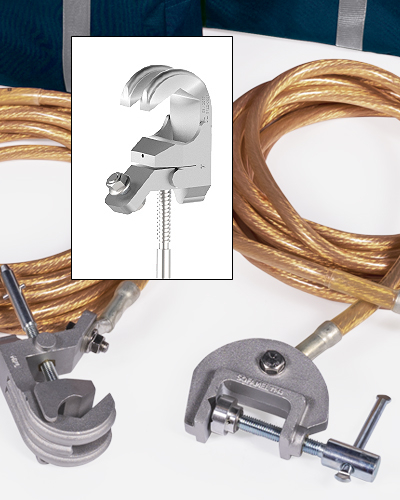

  • 3 MPL aluminium alloy clamps with screw tighten for cylindrical conductors with diameter between 5 and 45 mm and flat bars.
  • 3 copper cables with PVC insulation. Section and length depending on model.
  • 3 TT-50 milling earthing lathe.
  • 3 nylon bags to store and transport the equipment.

* Depending on availability, the colour of the bag may vary.

Ref. 290
