LA NUOVA ERA DEI RILEVATORI DI TENSIONE PERSONALE

MASSIMA SICUREZZA



PRO
7,9/69 kV

SICUREZZA CON RILEVAMENTO
A LUNGA DISTANZA

Rilevatore di tensione personale a campo elettrico omnidirezionale, indicato per il personale che esegue lavori in aree con tensione elettrica, come ispezioni, pulizia, manutenzione e, in generale, tutte le operazioni vicino a elementi in tensione.

Distanza di rilevamento:
2 m per 7,9 kV e 5 m per 69 kV

EXPERT
10/66 kV

SICUREZZA CON RILEVAMENTO
PER LAVORI VICINI

Rilevatore di tensione personale a campo elettrico omnidirezionale, indicato per operatori di linee elettriche che eseguono manutenzione, riparazioni e altri lavori in prossimità delle linee in tensione.


Distanza di rilevamento:
1 m per 10 kV e 3 m per 66 kV

PRO
66/138 kV

SICUREZZA CON RILEVAMENTO
PER LAVORI MOLTO VICINI

Rilevatore di tensione personale a campo elettrico omnidirezionale, progettato specificamente per i centri di trasformazione dove l'operatore lavora in spazi con distanza minima dall'area di pericolo.


Distanza di rilevamento:
1,4 m per 66 kV e 4 m per 138 kV

DUAL
66 kV
SICUREZZA CON RILEVAMENTO
PER LAVORI MOLTO VICINI

7,9/69 kV
SICUREZZA CON RILEVAMENTO
A LUNGA DISTANZA

Rilevatore di tensione personale a campo elettrico omnidirezionale, indicato per operatori di linee elettriche che eseguono manutenzione, riparazioni e altri lavori in prossimità di linee in tensione, con la possibilità di passare a una modalità meno sensibile per avvicinarsi ancora di più ai punti in tensione.

Distanza di rilevamento:
2 m per 7,9 kV e 5 m per 69 kV

Distanza di rilevamento:
1,4 m per 66 kV

DUAL
7.9/69 kV
SAFETY WITH LONG
RANGE DETECTION

110 kV
SAFETY WITH DETECTION
IN VERY CLOSE PROXIMITY

Personal omnidirectional electric field voltage detector, indicated for power line operators who carry out maintenance, repairs and other work close to live lines with the possibility of switching to a less sensitive operating mode and getting closer to the points in electrical tension.

Detection distance:
2m for 7,9kV and 5m for 69kV

Detection distance:
3m for 110kV

DUAL
7.9/69 kV
SAFETY WITH LONG
RANGE DETECTION

220 kV
SAFETY WITH DETECTION
IN VERY CLOSE PROXIMITY

Personal omnidirectional electric field voltage detector, indicated for power line operators who carry out maintenance, repairs and other work close to live lines with the possibility of switching to a less sensitive operating mode and getting closer to the points in electrical tension.

Detection distance:
2m for 7,9kV and 5m for 69kV

Detection distance:
4m for 220kV

DUAL
7.9/69 kV
SAFETY WITH LONG
RANGE DETECTION

400 kV
SAFETY WITH DETECTION
IN VERY CLOSE PROXIMITY

Personal omnidirectional electric field voltage detector, indicated for power line operators who carry out maintenance, repairs and other work close to live lines with the possibility of switching to a less sensitive operating mode and getting closer to the points in electrical tension.

Detection distance:
2m for 7,9kV and 5m for 69kV

Detection distance:
5m for 400kV
D-tueri pro 25kV
PRO
25 kV
SAFETY WITH DETECTION
IN LONG RANGE






Personal omnidirectional electric field voltage detector, suitable for use in repair and maintenance work on high-speed railway installations operating with 25 kV alternating current.




Detection distance:
2.7m for 25kV




Technical specifications

Voltage Range: 7.9kV to 69kV
Operating frequency: 50 y 60Hz
Degree of protection: IP65
Light output: 2W
Power supply: Li ion 3,7V 1050mAh
Technical specifications

Voltage Range: 66kV to 138kV
Operating frequency: 50 and 60Hz
Degree of protection: IP65
Light output: 2W
Power supply: Li ion 3,7V 1050mAh
Functionality

When the user is close to an electric field between 66kV – 138kV and exceeds a distance of approximately 1.4 metres for 66kV and 4 metres for 138kV, the detector sounds a signal. The alarm does not stop sounding until you move away from the dangerous zone.
Technical specifications

Voltage Range: 7.9kV to 69kV
Operating frequency: 50 y 60Hz
Degree of protection: IP65
Light output: 2W
Power supply: Li ion 3,7V 1050mAh
Basic unctionality

MODE 7.9/69 kV
When the user is close to an electric field between 7.9kV – 69kV and exceeds a distance of approximately 2 metres for 7.9kV and 5 metres for 69kV, the detector sounds a signal. The alarm does not stop sounding until you move away from the dangerous zone.

MODE 66 kV
When the user is close to an electric field between of 66kV and exceeds a distance of approximately 1,4 metres the detector sounds a signal. The alarm does not stop sounding until you move away from the dangerous zone.
Technical specifications

Voltage Range: between 7.9kV to 110kV
Operating frequency: 50 y 60Hz
Degree of protection: IP65
Light output: 2W
Power supply: Li ion 3,7V 1050mAh
Basic functionality

MODE 7.9/69 kV
When the user is close to an electric field between 7.9kV – 69kV and exceeds a distance of approximately 2 metres for 7.9kV and 5 metres for 69kV, the detector sounds a signal. The alarm does not stop sounding until you move away from the dangerous zone.

MODE 110 kV
When the user is close to an electric field between of 110kV and exceeds a distance of approximately 3 metres the detector sounds a signal. The alarm does not stop sounding until you move away from the dangerous zone.

SEE PRODUCT
Technical specifications

Voltage Range: 7.9kV to 220kV
Operating frequency: 50 y 60Hz
Degree of protection: IP65
Light output: 2W
Power supply: Li ion 3,7V 1050mAh
Basic functionality

MODE 7.9/69 kV
When the user is close to an electric field between 7.9kV – 69kV and exceeds a distance of approximately 2 metres for 7.9kV and 5 metres for 69kV, the detector sounds a signal. The alarm does not stop sounding until you move away from the dangerous zone.

MODE 200 kV
When the user is close to an electric field between of 200kV and exceeds a distance of approximately 4 metres the detector sounds a signal. The alarm does not stop sounding until you move away from the dangerous zone.

SEE PRODUCT
Technical specifications

Voltage Range: 7.9kV to 400kV
Operating frequency: 50 and 60Hz
Degree of protection: IP65
Light output: 2W
Power supply: Li ion 3,7V 1050mAh
Basic functionality

MODE 7.9/69 kV
When the user is close to an electric field between 7.9kV – 69kV and exceeds a distance of approximately 2 metres for 7.9kV and 5 metres for 69kV, the detector sounds a signal. The alarm does not stop sounding until you move away from the dangerous zone.

MODE 400 kV
When the user is close to an electric field between of 400kV and exceeds a distance of approximately 5 metres the detector sounds a signal. The alarm does not stop sounding until you move away from the dangerous zone.

SEE PRODUCT

D Tueri, rilevatori di tensione personale


ALTA TECNOLOGIA

L'elemento di sicurezza individuale ideale per essere utilizzato con la massima sicurezza nei centri di Distribuzione/Trasformazione e Linee Aeree.




Rilevamento Omnidirezionale


Connessione USB-C


Media Tensione


Segnale Acustico

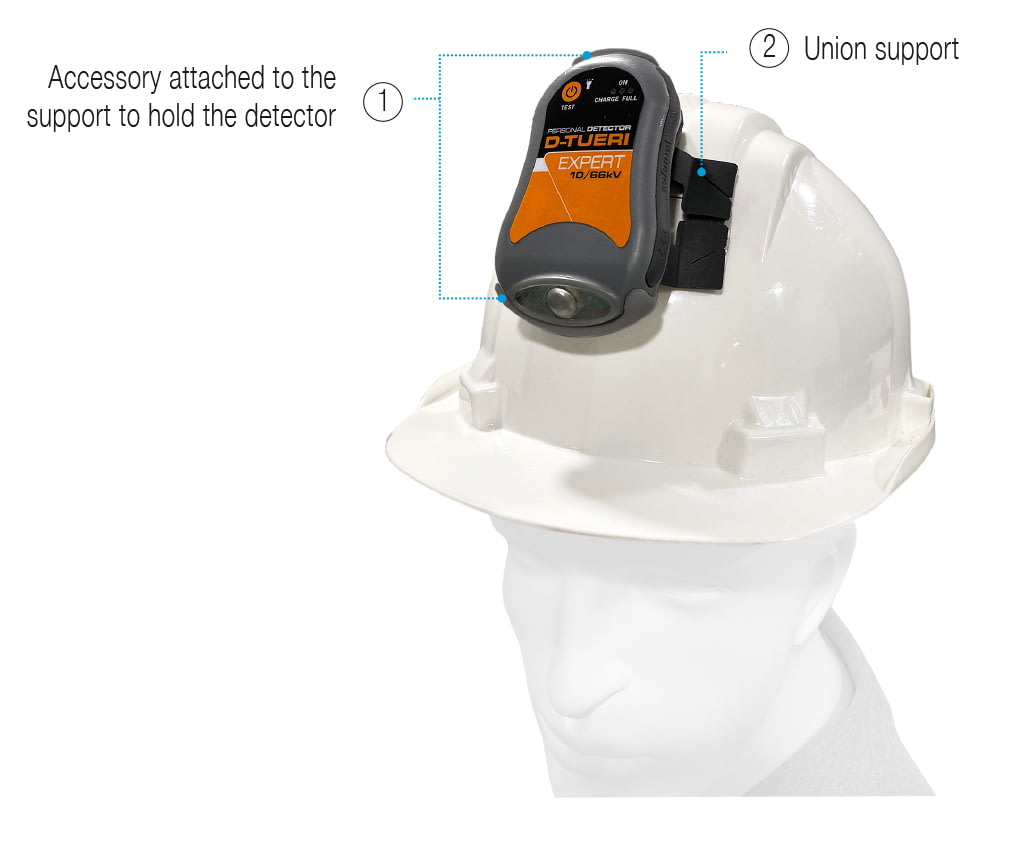

EASY PLACEMENT

Inside or outside the helmet.

Includes an accessory set that ensures a perfect fit in any helmet.
