20104 SF-42

Crimping tools for insulated and non-insulated ferrules

390125

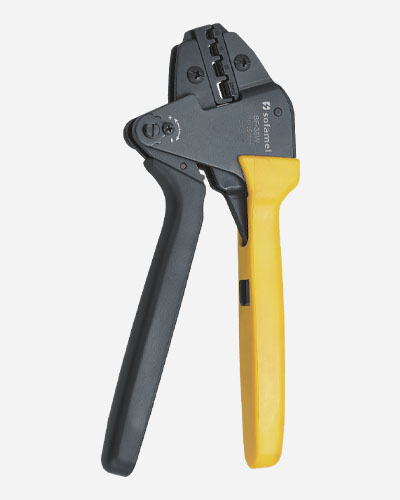

Mini-Type self-adjustable crimping plier
Insulated and non-insulated ferrules

  • Lugs are effortlessly inserted into the crimping pliers from the side.
  • The adaptive crimping pliers accommodate lug specifications within the crimp range, eliminating the need to differentiate between terminal sizes.
  • They are compatible with all single-line bushings and two-wire bushing lugs within the specified application range.
  • Compression system by squared diaphragm.
Ref. 591
Share it:

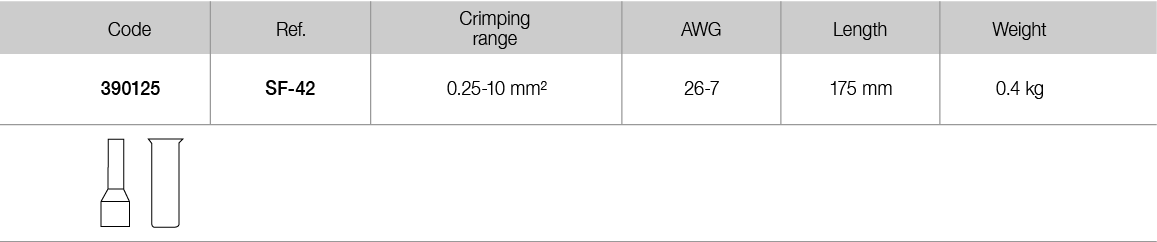

Specifications





Quick pressure adjustment button.
The pressure adjustment button is divided into three pressure output levels: 0.25–2.5 mm², 4–6 mm², and 10 mm².



Automatic adjustment according to the cross-sectional area of the terminals during crimping to facilitate operation with different sizes.
The best contact surface is guaranteed and complies with the DIN standard.

  When the crimping is not the same size, simply pull the adjustment knob to the corresponding specification and then reset.
