20105 CSSL-40

Stripping tools for MV cables

400008
400009

Cable stripper for strippable semi-conductor layer
  • Application: To strip 10/11 kV or 20/22 kV Strippable Semiconductor.
  • Adjustable cutting depth, max. 2 mm, adjustable range of rotary knob is 0-0.9 mm, each adjustable depth is 0.1 mm.
  • Applicable cable Ø: 16-41 mm.
  • Blade min. hardness: 52 HRC.
  • Include a pliers and tool holder briefcase.
Peeling process
There are two methods for stripping the semiconducting layer:
1. Spiral cutting
2. Longitudinal cutting
Ref. 606
Share it:

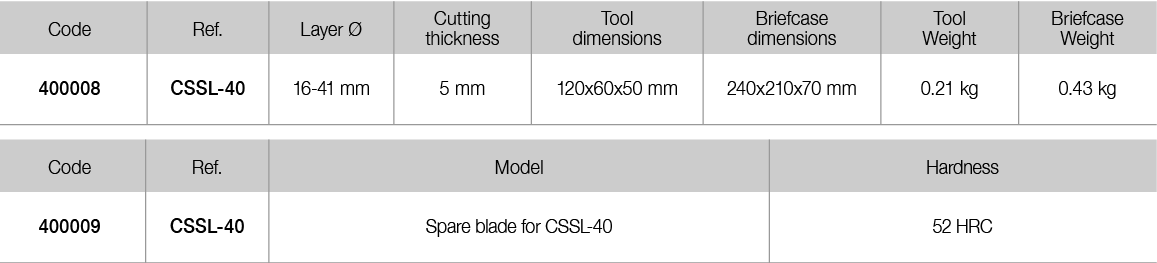

Specifications
