20202 EBC-5

Electrohydraulic tools

412000
Battery-powered hydraulic crimping tool

  • 180 degree swivel head.
  • 2-speed hydraulic system.
  • Independently designed oil return system can safety retract without electricity.
  • The trigger switch and return button are separately and activated by only one hand.
  • Built-in chip, with memory function, can stop automatically when crimping is completed, realize intelligent crimping.
  • Crimping cycle data is automatically stored on a memory card for transfer to PC by USB interface or bluetooth.
  • OLED display provides battery capacity, operational and service crimping cycled, bluetooth information, etc.
  • Automatic retraction when the maximum pressure is reached.
  • LED lightning for work in dark environments.
  • Rubber grip to have low noise and minimal vibration.
  • Include tool holder briefcase.

Available dies

HD5 copper and aluminium cable lugs/butt-connectors and pin terminals by hexagonal compression
Copper: up to 240 mm²
Aluminium: up to 150 mm²

CDC5 copper and aluminium compression clamps by elliptical/circular compression
Up to 70 mm²
Ref. 616
Share it:

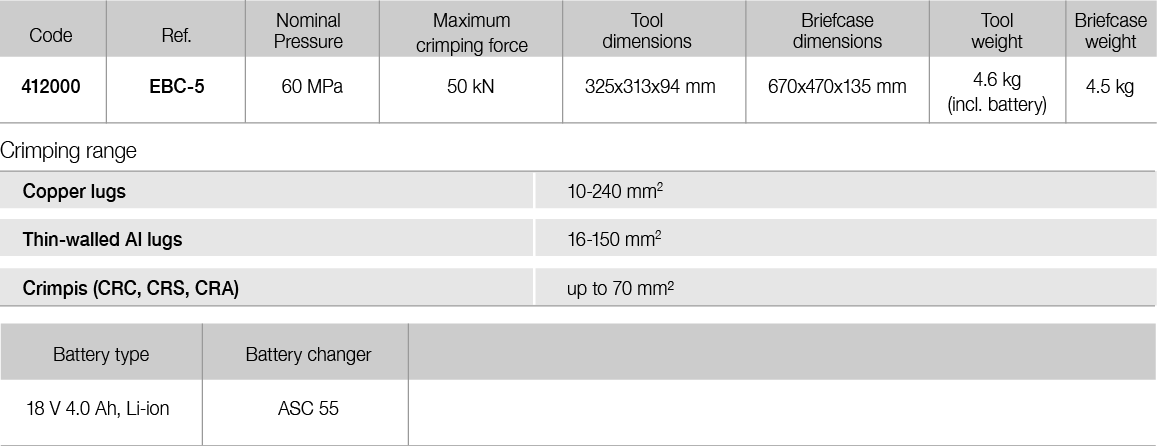

Specifications
