FOR USE IN MEDIUM AND HIGH
VOLTAGE SUBSTATIONS

GIVES VISIBILITY TO ELECTRICAL VOLTAGE
Product Characteristics

Operating phase-to-ground voltage 2.9-79.6 kV
Operating phase-to-phase voltage 5-138 kV
Clamp opening 22-53 mm
Female connection interface: M8
Orientation 30º in any direction
Degree of protection IP65
Functionality

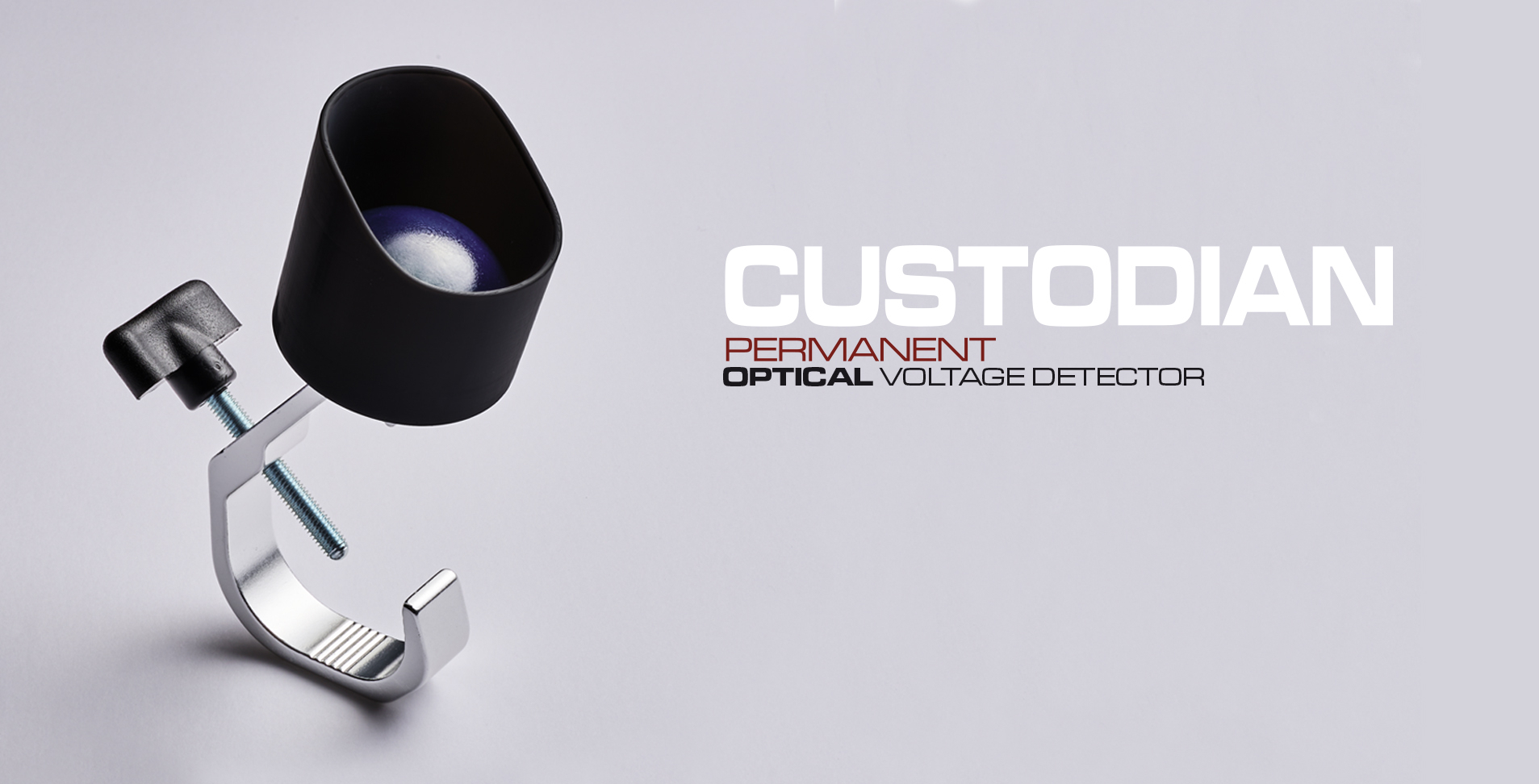

Permanent detector to indicate the presence of voltage by means of a light.
For indoor use, mainly in medium and high voltage substations.

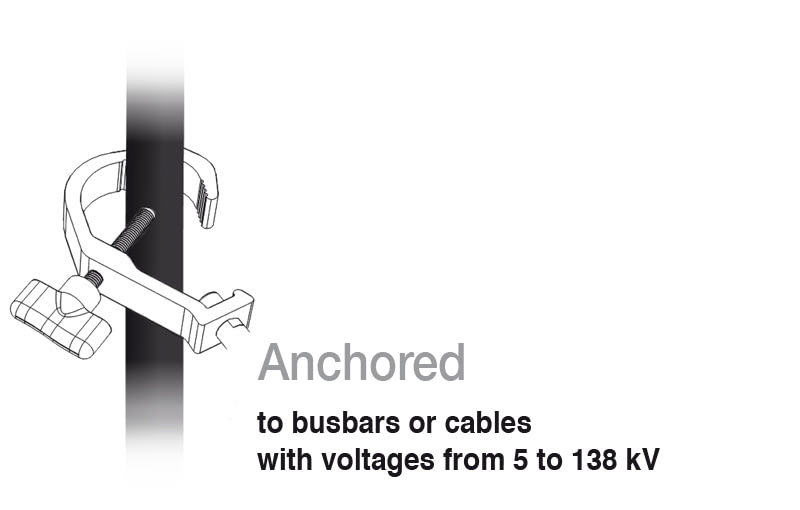

Placed on busbars or cables with voltages from 5 to 138 kV.
Possibility for the user to change contact electrode.
Assembly

1. Fixed




2. Adjustable
