Mod. PATF-PC

Unipolar Earthing Equipment

Integrated earthing equipment for railway system catenaries and double catenaries.  With one PC clamp to enable earthing of lines for repair work.

According to IEC 61230 standard.

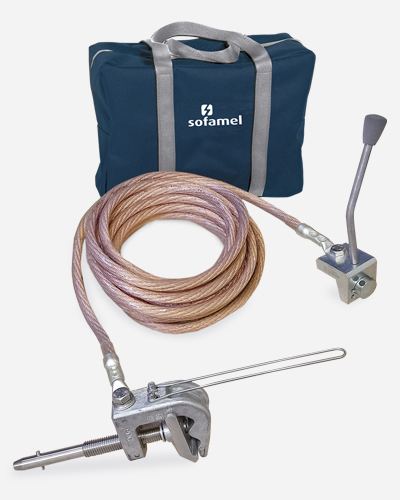

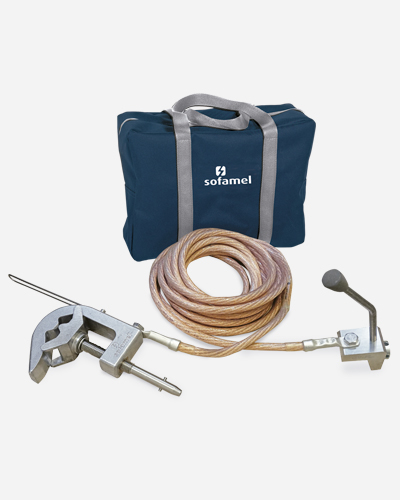

Composed of:

  • 1 PC aluminium alloy clamps with screw tighten for cylindrical conductors with diameter 35 max.
  • 1 copper cables with PVC insulation of 50 mm2 section and 7 m of length.
  • 1 TTRS or TTR milling earthing lathe.
  • 1 nylon bags to store and transport the equipment.
