20204 BHM-7

Hydraulic pumps

415004


Portable hydraulic pump operated by battery

Portable next-generation electrohydraulic pump, powered by a 24 V 5.0 Ah Li-Ion battery for extended operation.
A full charge allows approximately 150 crimps of 120 mm² copper terminals.


Technical features:

  • 1h fast charging.
  • Remaining battery power displayed after each crimp.
  • Pressure release button to release pressure at any time.
  • Utomatic shut-off and pressure retention when reaching the maximum level.
  • For heads up to 100T.

Including:

  • 24 V 5.0 Ah Battery.
  • Charger.
  • Wired controller.
  • 2 m hose with quick couplers.
  • Carrying bagpack.




Ref. 635
Share it:

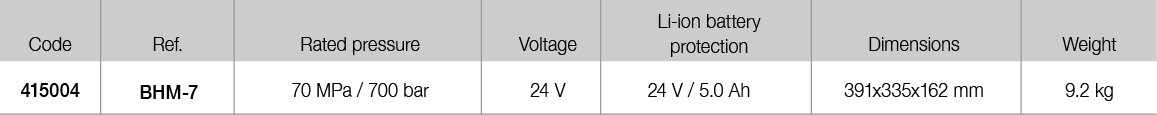

Specifications
