Equipment with PP15 clamps for vertical connection to busbars or conductors
Clamps designed to be connected vertically to distribution busbars or cylindrical conductors, ensuring a stable support and easy contact inspection. Includes a trifurcating connector with rubber housing.
According to IEC 61230 standard.

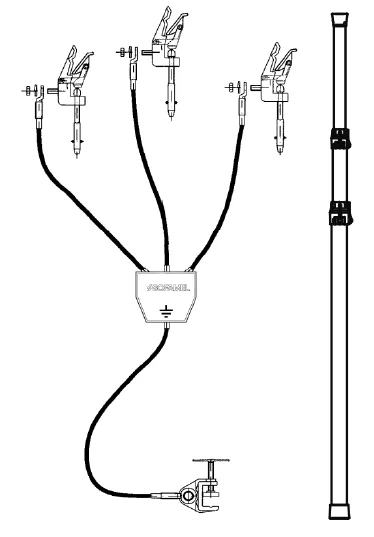

Composed of:
- 3 PP15 aluminium-alloy clamps with bayonet screw fixing, for cylindrical conductors with diameters between 8 and 14 mm and flat bars up to 14 x 54 mm.
- 3 copper PVC-insulated cables, 25/35/50 mm² cross-section (depending on model), 0.75 m long.
- 1 copper PVC-insulated cable, 25/35/50 mm² cross-section (depending on model), 2 m long.
- 1 insulated trifurcating connector with rubber housing.
- 1 TT-38A earthing lathe.
- 1 1.5 m telescopic pole, three sections.
- 1 plastic case for storing and transporting the equipment (optional with wheels).
