Equipment with MPU (screw) clamps
MPUB/MPUH screw clamps for cylindrical conductors, busbars, or fixed points in substations.
According to IEC 61230 standard.

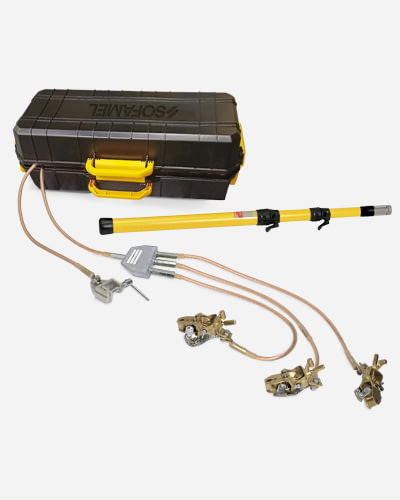

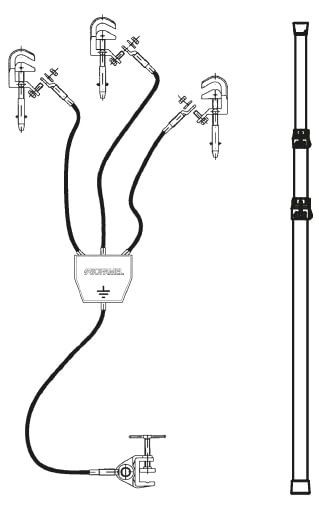

Composed of:
- 3 MPU aluminium-alloy clamps with screw tightening and bayonet shaft (MPU/B) or Hex-12 shaft (MPU/H). For cylindrical conductors with diameters between 4 and 35 mm; flat bars up to 45 mm; fixed points from 20 to 25 mm.
- 3 copper PVC-insulated cables, 25/35/50 mm² cross-section, 0.75 m long.
- 1 copper PVC-insulated cable, 25/35/50 mm² cross-section, 2 m long.
- 1 protected trifurcating connector with rubber housing.
- 1 TT-38A earthing lathe.
- 1 1.5 m telescopic pole, three sections.
- 1 plastic case for storing and transporting the equipment (optional with wheels).
