Equipment with MPU clamps and EMP insulated handle
With an earthing clamp instead of a lathe. An insulated handle with a multipurpose head is added to facilitate positioning the earthing clamp and improve ergonomics.
According to IEC 61230 standard.

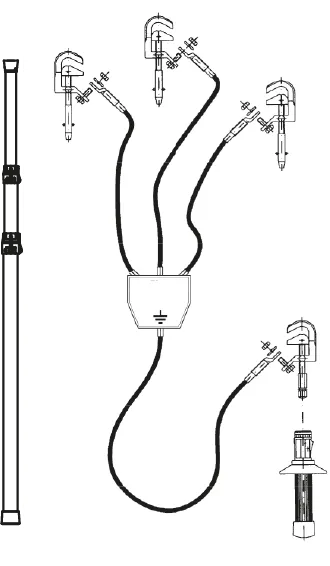

Composed of:
- 3 MPU aluminium-alloy clamps with screw tightening and bayonet shaft (MPU/B). For cylindrical conductors with diameters between 4 and 35 mm; flat bars up to 45 mm; fixed points from 20 to 25 mm.
- 1 MPU/H clamp.
- 3 copper PVC-insulated cables, 25/35/50 mm² cross-section, 0.75 m long.
- 1 copper PVC-insulated cable, 25/35/50 mm² cross-section, 2 m long.
- 1 protected trifurcating connector with rubber housing.
- 1 1.5 m telescopic pole, three sections.
- 1 insulated handle with multipurpose head.
- 1 plastic case for storing and transporting the equipment (optional with wheels).
